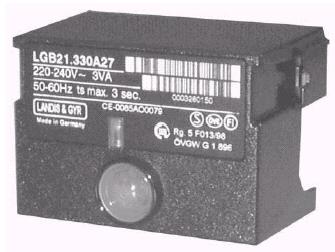

LGB32系列燃气燃烧器控制器(SIEMENS)

LGB32系列燃气燃烧器控制器(SIEMENS)
产品说明:

The LGB... burner controls are used for the startup and supervision of single- or 2-stage gas or gas / oil burners in intermittent operation. Depending on the type of burner control used, the flame is supervised either by an ionization probe, a blue-flame detector QRC1... for forced draft gas / oil burners, or a UV detector QRA... (with auxiliary unit AGQ1...A27).

In connection with the respective adapters, the LGB... burner controls replace their predecessor types LFI7... and LFM1... (also refer to ?Replacement types under Ordering).

  • Automatic forced draft burners for gaseous fuels to EN 676

  • Gas burner controls to EN 298

  • Undervoltage detection

  • Air pressure supervision with functional check of the air pressure monitor during startup and operation

  • Electrical remote reset facility

  • LGB41... for use with atmospheric gas burners

 型号表
型号 认证 tw/s t1/s TSA/s t3n/s t3/s t4/s t9/s t10/s t11/s t12/s t20/s
LGB21.130A27 CH,EU,S,SF 8 7 3 2.4 2 8 - 5 - - 6
LGB21.230A27 CH,EU,S,SF 8 15 3 2.4 2 8 - 5 - - 38
LGB21.330A27 CH,EU,H,S,SF 8 30 3 2.4 2 8 - 5 - - 23
LGB21.350A27 CH,EU,H,S,SF 8 30 5 4 2 10 - 5 - - 2
LGB21.550A27 AUS,DH,EU 8 50 5 4 2 10 - 5 - - 2
LGB22.130A27 CH,EU,N,S 9 7 3 2.4 3 8 - 3 12 12 21
LGB22.230B27 CH,EU,N,S,SF 9 20 3 2.4 3 8 - 3 16.5 16.5 2
LGB22.330A27 AUS,CH,EU,H,N,S,SF 9 30 3 2.4 3 8 - 3 12 11 2
LGB22.330A270 EU 9 30 3 2.4 3 8 - 3 12 11 2
LGB32.130A27 CH,EU 9 7 3 2.4 3 8 - 3 12 12 21
LGB32.230A27 CH,EU 9 20 3 2.4 3 8 - 3 16.5 16.5 2
LGB32.330A27 CH,EU 9 30 3 2.4 3 8 - 3 12 11 2
LGB32.350A27 CH,EU 9 30 5 4.4 1 10 - 3 12 9 2
LGB41.255A27 EU 18 - 5 4 2 10 5 - - - 10
LGB41.258A27 CH,EU,H,SF 18 - 5 4 2 10 9 - - - 10
tw 等待时间
t1 预吹扫时间
TSA 点火安全时间
t3 预点火时间
t3n 后点火时间
t4 电磁阀1到电磁阀2的间隔时间,或电磁阀1到比例控制开始的间隔时间
t9 第二安全时间(仅LGB41...
t10 空气压力信号建立时间
t11 伺服马达程序打开时间
t12 伺服马达程序关闭时间
t20 自锁定后的程序内部循环时间
 技术参数
主要参数
主电压 AC220V -15%...AC240V +10%LGB2../LGB4...
AC230V -15%/+10%LGB32...
AC100V -15%...AC110V +10%
主频率 50...60Hz ±6%
外部保险丝 10A
功率 3VA
重量 230g
保护等级 IP40
额定电流
端子3 3A(可在0.5S内到15A
端子4,5,7 2A
端子9,10 1A
端子12 5A
环境条件
运输环境 IEC 721-3-2
内部条件 class 2K2
温度范围 -50...+60ºC
机械条件 class 2M2
湿度 <95%
运行环境 IEC 721-3-3
内部条件 class 3K5
机械条件 class 3M2
温度范围 -20...+60ºC
湿度 <95%
不得进水
