产品展示 >> SIEMENS(西门子)程控器

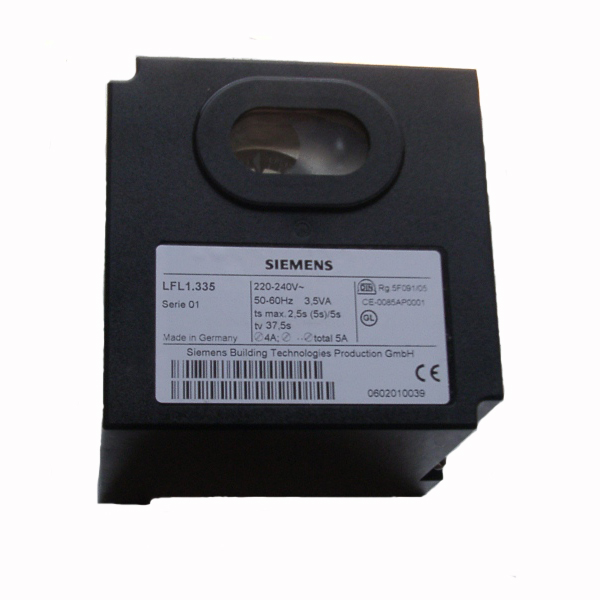

LFL1...系列燃气燃烧器控制器

LFL1...系列燃气燃烧器控制器
产品说明:

The burner controls of the LFL1... range are designed for the control and supervision of forced draught gas burners of both expanding flame and interrupted pilot construction of medium to high capacity. They are universally applicable and can be used for both multistage and modulating burners as well as for dual-fuel burners and for burners of stationary air heaters (WLE to DIN 4794).

The difference between series 01 and 02 lies in the duration of the safety time for the pilot burner of burners using pilot gas valves.

For atmospheric burners of high capacity, type LFL1.638 is available.

For burner controls used with burners in continuous operation, types LGK16... .

 型号表
  LFL1.122 Series 02 LFL1.133 Series 02 LFL1.322 Series 02 LFL1.333 Series 02 LFL1.335 Series 01 LFL1.622 Series 02 LFL1.635 Series 01 LFL1.638 Series 01
t1 10 9 36 31.5 37.5 66 67.5 67.5
t2 2 3 2 3 2.5 2 2.5 2.5
t2’ - 3 - - 5 - 5 5
t3 4 3 4 6 5 4 5 5
t3’ - - - - 2.5 - 2.5 2.5
t4 6 6 10 12 12.5 10 12.5 12.5
t4’ - - - - 15 - 15 15
t5 4 3 10 12 12.5 10 12.5 12.5
t6 10 14.5 12 18 15 12 15 15
t7 2 3 2 3 2.5 2 2.5 2.5
t8 30 29 60 72 78 96 105 105
t9 2 3 2 3 5 2 5 7.5
t10 6 6 8 12 10 8 10 10
t11 optional optional optional optional optional optional optional optional
t12 optional optional optional optional optional optional optional optional
t16 4 3 4 6 5 4 5 5
t13 10 14.5 12 18 15 12 15 15
t20 32 60 - 27 22.5 - - -
t1 预吹扫时间,风门打开 t7 从开始到端口7开始工作的间隔时间(风机2开始延迟时间)
t2 安全时间 t8 启动持续时间(没有端口11和12)
t2’ 安全时间或1段火安全时间 t9 第二安全时间
t3 预点火时间,短(点火变压器连接端口16) t10 从启动到空气压力监测开始的间隔时间(不包括风门运行时间)
t3’ 预点火时间,长(点火变压器连接端口15) t11 风门打开到****位的运行时间
t4 从t2开始到端口19打开2段火的间隔时间 t12 风门运行到小火位的时间
t4’ 从t2’开始到端口19打开2段火的间隔时间 t13 允许的燃烧后时间
t5 从t4结束到端口20打开比例控制或阀门的间隔时间 t16 直到风门给出打开命令的间隔时间
t6 后吹扫时间(带风机2) t20 程控器锁定后的顺序自检时间
 技术参数
主要参数
主电压 AC220V -15%...240V +10%

AC100V -15%...110V +10%

主频率 50...60Hz ±6%
内部保险丝 T63H 250V to IEC 127
外部保险丝 16A
功率 3VA
重量 1000g(底座165g)
保护等级 IP40
额定电流
端子1 5A(可短时间20A)
端子3679...1115...20 4A(可短时间20A)
端子45之间开关 1A
端子412之间开关 1A
端子414之间开关 5A(可短时间20A)
环境条件
运输环境 IEC 721-3-2
内部条件 class 2K2
温度范围 -50...+70ºC
湿度 <95%
运行环境 IEC 721-3-3
内部条件 class 3K5
温度范围 -20...+60ºC
湿度 <95%
不得进水
